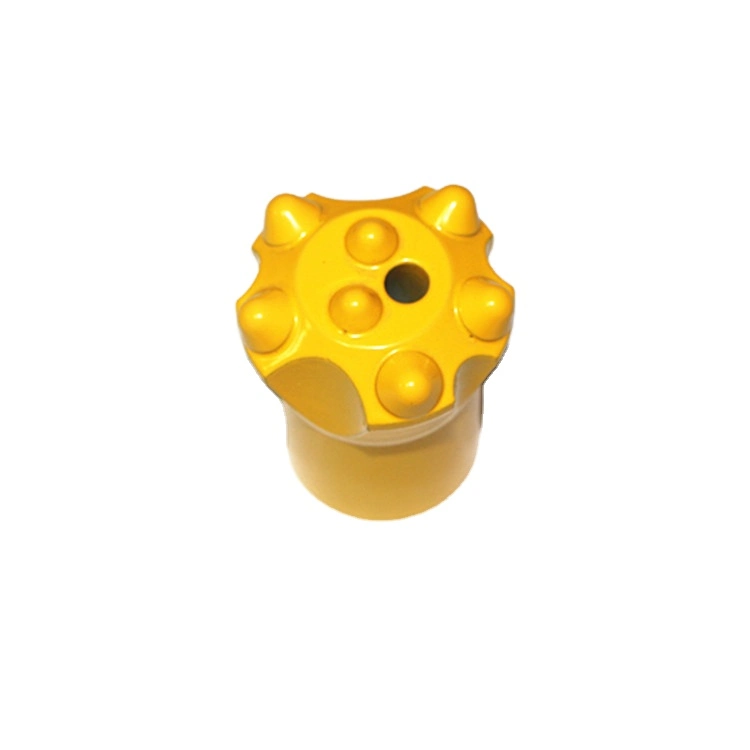

Tapered Button Bits
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
| Tapered Button Bits | Diameter | Button(mm) | Taper | Flushing holes | Part No. | ||||||
| mm | inch | Gauge | Front | Angle () | Button Type | Side | Front | ||||
| Taper 7 Button Bits | 32 | 1 17/64 | 3*8 | 1*8 | 25 | Spherical Ballistic Conical | 7 | 2 | 1 | GLQ432-722 | |
| 36 | 1 27/64 | 3*8 | 1*8 | 25 | 7 | 2 | 1 | GLQ436-722 | |||
| 38 | 1 1/2 | 3*8 | 1*8 | 25 | 7 | 2 | 1 | GLQ438-722 | |||
| 40 | 1 37/64 | 3*9 | 1*8 | 25 | 7 | 2 | 1 | GLQ440-722 | |||
| 42 | 1 21/32 | 3*9 | 1*8 | 25 | 7 | 2 | 1 | GLQ442-722 | |||
| Taper 12 Button Bits | 32 | 1 1/32 | 5*7 | 2*7 | 35 | Spherical Ballistic Conical | 12 | 2 | 1 | GLQ732-1222 | |
| 34 | 1 3/8 | 5*7 | 2*7 | 35 | 12 | 2 | 1 | GLQ734-1222 | |||
| 36 | 1 27/64 | 5*8 | 2*7 | 35 | 12 | 2 | 1 | GLQ736-1222 | |||
| 38 | 1 1/2 | 5*8 | 2*7 | 35 | 12 | 2 | 1 | GLQ738-1222 | |||
| 40 | 1 37/64 | 5*9 | 2*7 | 35 | 12 | 2 | 1 | GLQ740-1222 | |||
| 42 | 1 21/32 | 5*9 | 2*8 | 35 | 12 | 2 | 1 | GLQ742-1222 | |||
